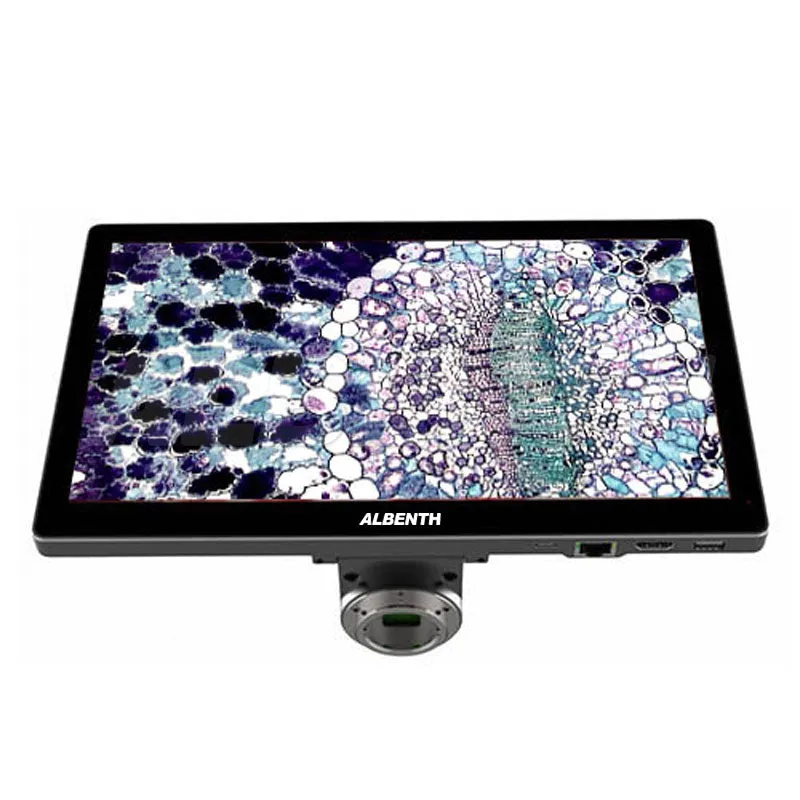

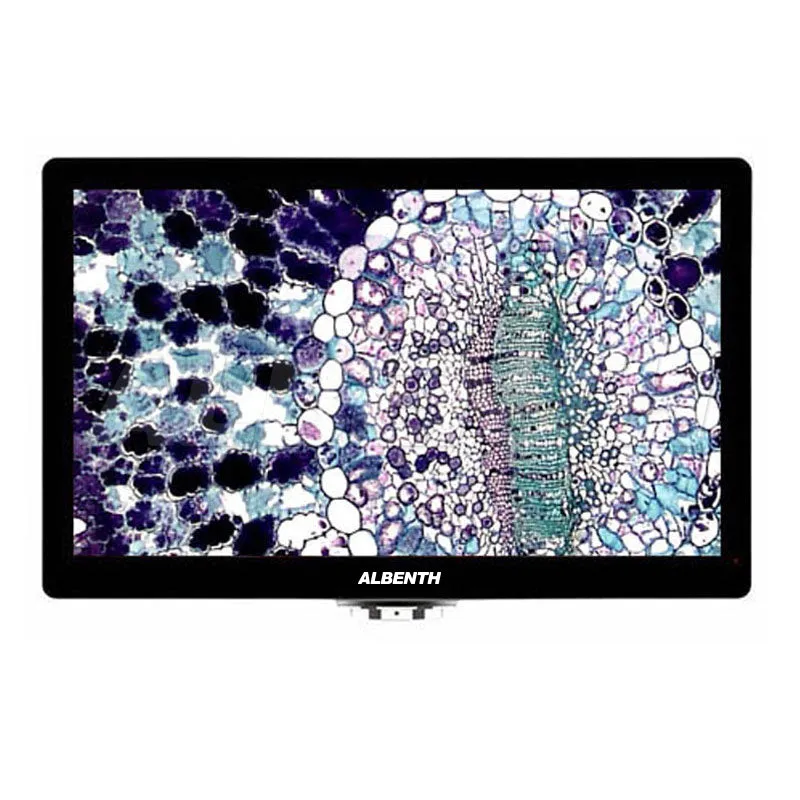

● Full-view 11.6" high-definition LCD screen
● Inter newest GLK platform
● A variety of peripheral interfaces
● Windows 10 64-bit enterprise version system
● Built-in 5M/16M high-resolution imaging system
● Built-in powerful measurement and analysis software system
Specification
● Image Sensor: 16MP COMS color sensor
● Sensor Size: 1/2.3"
● Pixel Size (resolution): 1.335*1.335um
● Screen type: IPS screen
● Screen resolution: 1920*1080

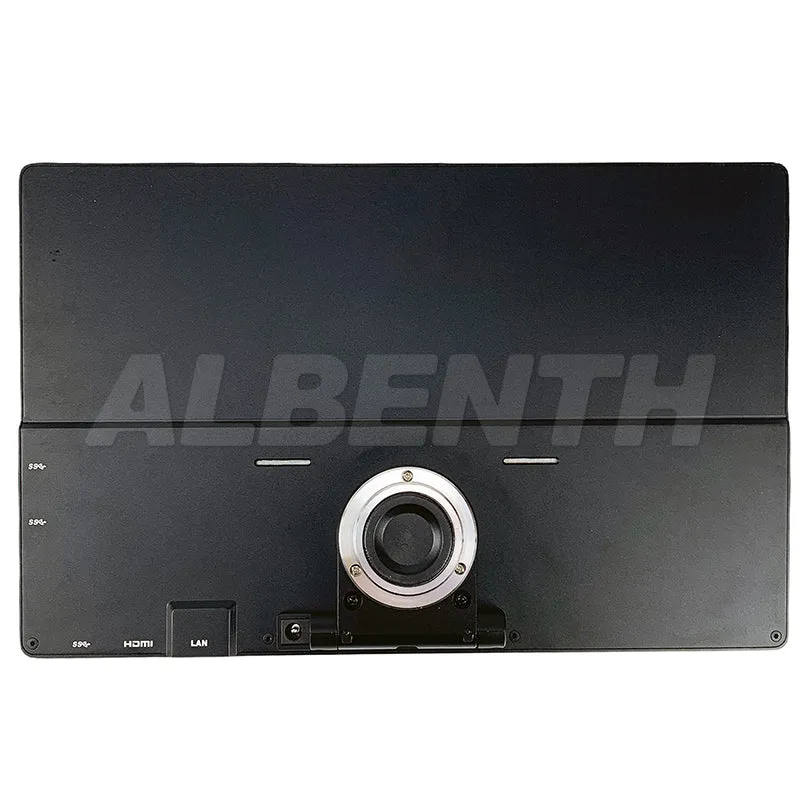

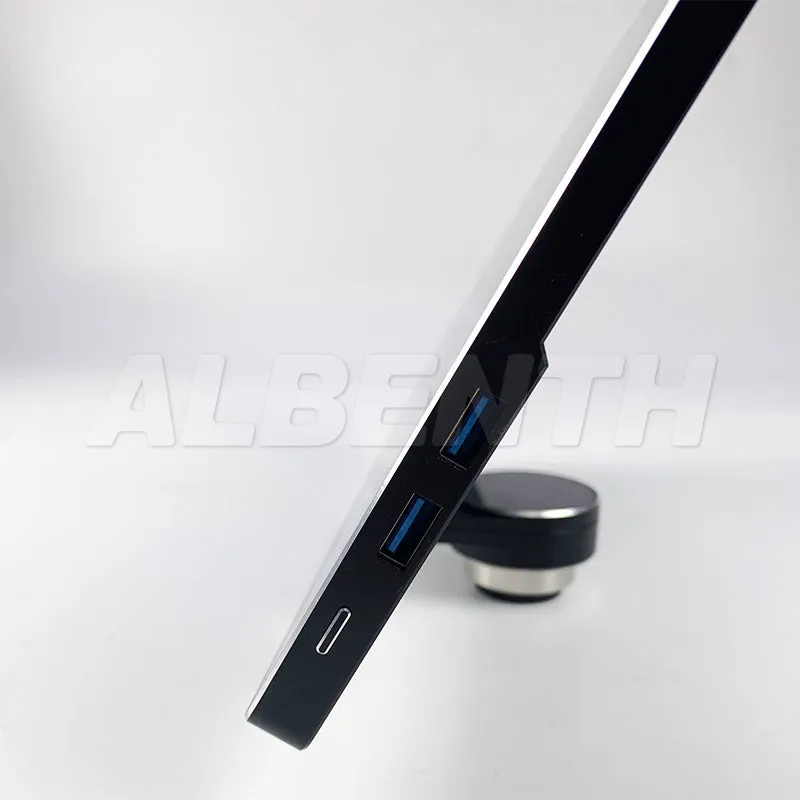

● Output: USB3.0, USB2.0, HDMI, Gigabit LAN port,
● Frame Rate: 1920x1080@30fps
● Operating system: Built-in Windows 10, 64-bit operating system
● CPU: Inter newest GLK platform
● Wi-Fi: 2.4GHz/5GHz dual WiFi support 802.11a/b/g/n/ac protocol
● Bluetooth: Bluetooth 4.2
● Image Capture: Support 16MP image capture
● Video Record : Support 1080P video
● Basic Function: Brightness, contrast, saturation, white balance
● Image adjustment: Exposure, Flicker Suppression, Sharpness, Gamma, Cb/Cr gain adjustment
● Built-in software function:
- Mark function: Point coordinates, Reticle, Coordinates, Text annotation
- Length measurement: Straight length, broken line length, curve line length, the distance between parallel lines, point-line distance
- Center distance of circles: Center distance of circles
- Geometry measurement: Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
- Geometry area: Polygon and square
● Power: DC-12V/2A
● Camera mount type: C-Mount thread
Features
● UI: Digital design, mouse operation, humanized setting
● Mark function: Point coordinates, cross lines, coordinate systems, text annotations
● Length measuring: Line length, line length, length of curve, parallel line distance and point line distance
● Center distance of circles: Radius fixed circle, two point circle, three point fixed circle
● Geometry measurement: Line length, radius fixed circle, two point circle, three point fixed circle, concentric circle
● Geometry area: Polygon and square
● Image capture: Support 16M photos
● Video record: Support 1080P video
● Measuring tool: S-EYE
Packing list:
1x 11.6'' screen built-in 16MP camera (C-Mount thread)
1x Power adapter
