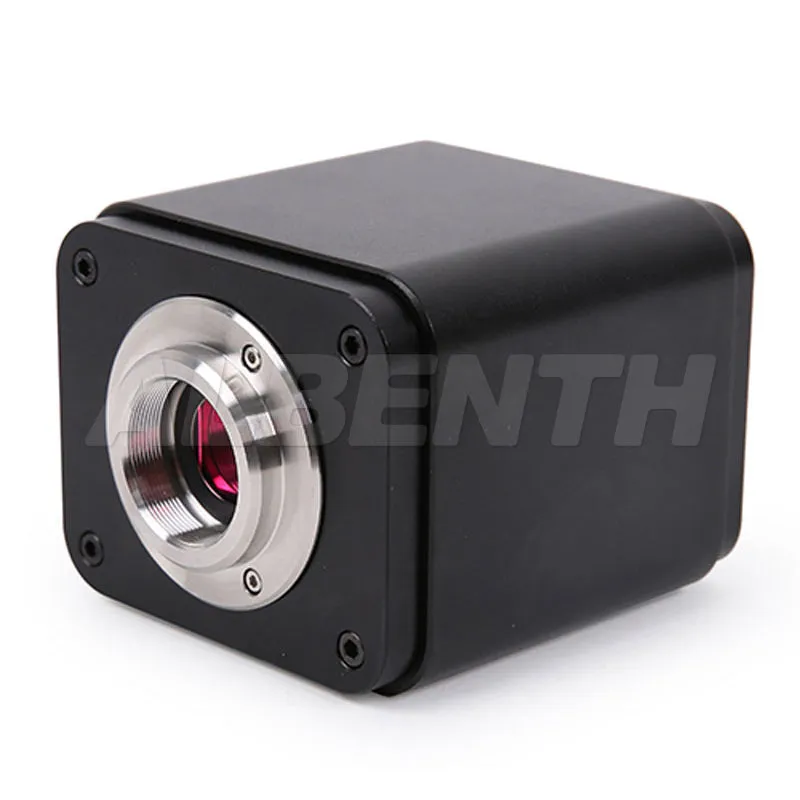

Name: Albenth 4K 8M Camera Microscope 30fps IMX485 1/1.2" CMOS HDMI, GigE, WLAN, USB2.0 C-Mount Microscope Camera Built-in Measurement Software
SKU: 130114

This 4K camera is the next-generation live-view imaging system with 4K resolution (Video) at 30 FPS. It comes with a Sony Exmor CMOS sensor with high sensitivity, low dark current, and no smear achieved through the adoption of R, G, and B primary color mosaic filters.

Specification:

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
RT50H-4KB2	Sony IMX485(C) 1/1.2"(11.14x6.26)	2.9x2.9	2188mv with 1/30s 0.39mv with 1/30s	30@38402160(HDMI) 30@38402160(NETWORK) 30@3840*2160(USB)	1x1	0.04ms~1000ms

Interface or Button

USB Mouse	Connect USB mouse for easy operation with embedded XCamView software
USB2.0	Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real-time
USB Video	Connect PC or another host device to realize video image transmission
HDMI	Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
LAN	LAN port to connect router and switch to transfer video
SD	Comply with SDIO3.0 standard an SD card could be inserted for video and image saving
ON/OFF	Power switch
LED	LED status indicator
DC12V	Power adapter connection (12V/1A)

Output Interface

HDMI Interface	Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P
LAN Interface	Support real-time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration
WLAN Interface	Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode
USB Video Interface	Connecting USB Video port of PC for video transfer MJPEG format video

Other Function

Video Saving	Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps
Image Capture	8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive
Measurement Saving	Measurement information is saved in different layers with image content Measurement information is saved together with the image content in burn-in mode
ISP	Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function
Image Operation	Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real-time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function
Embedded RTC(Optional)	To support accurate time on board
Restore Factory Settings	Restore camera parameters to their factory status
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian

Software Environment under LAN/WLAN/USB Video Output

White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture or Movie
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display:19” or Larger CD-ROM

Operating Environment:

Operating Temperature (in Centidegree)	-10°~ 50
Storage Temperature (in Centidegree)	-20°~ 60°
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter
