● HD Lite uses a new 5 megapixel HD image sensor. The detail is more clearly presented, providing for excellent image quality.
● The significant innovation of HD Lite is embedding the application software inside the camera. The user can control the camera with just a mouse. There is no need for a PC.
● HD Lite automatically analyzes the acquired images and optimizes the white balance, exposure time and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, HD Lite delivers ideal images, barely needing any parameter adjustment.
● HD Lite embedded software is designed for ease of use. There are two icons on the software starting screen, one is for image capture, the other is for the settings menu. It’s as intuitive as a smartphone.
● For the first time, an HDMI camera is equipped with complete exposure and gain settings. It allows exposure settings from 1ms to up to 10 seconds and 20 levels of gain adjustment. Compared with 1st generation TrueChrome where only auto exposure was available, the ease of use has been significantly improved and moreover, the sensitivity is 300 times higher.
● An increase in the exposure time increases the image noise. But the integrated 3D noise reduction function keeps the HD Lite image always clean and sharp. The following comparison images show the amazing 3D noise reduction effect.
● Just click on the button to start recording 1080P videos at 15fps. The recorded video files will be saved to the high-speed SD card directly. It also allows playback of the videos on the SD card directly.
● A series of image operation buttons on the right side of the screen allows the image to be flipped, rotated or a Region of Interest (ROI) to be selected. The ROI function can help to get more image details through magnification.
● The image comparison function is available in the setting menu. An image can be chosen to compare with the live image and even moved around or have an ROI selected.
● HD Lite adopts an innovative FPGA dual-core processor, FPGA1 high-definition image quality processor, and FPGA2 image output controller, to ensure high-speed high-quality images.
Specification:
● Sensor Type: CMOS
● Sensor Model: ON MT9P001I12STC
● Color/Mono: Color
● Array Diagonal: 7.13mm
● Resolution: 2MP, 2592(H)x1944(V)
● Pixel Size: 2.2μmx2.2μm
● Effective area: 5.7mm x 4.3mm
● Shutter Mode : Rolling
● Frame Rate: [email protected], 15fps@HDMI
● Exposure Time: 1ms-2s
● SD Format: FAT32
● Color Temperature: 1800-10000K
● Software: HDMI: Cloud 1.0 Ver; USB: Mosaic V2
● HDMI Key Settings: Preview: 1920x1080; Capture: 2592x1944; Video recording: 15fps@1920x1080
● Picture Format: HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM
● Multiple Cameras: Supports 4 Cameras Simultaneously in SDK

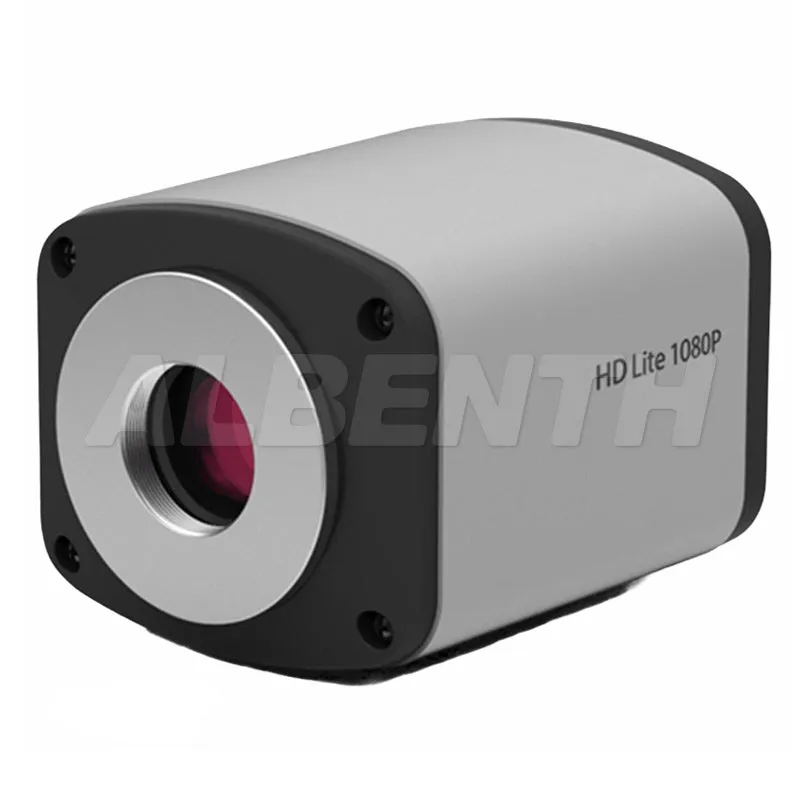

● Optical Interface: Standard C Mount
● Power: 2.4W
● Dimensions: 90.7mm x 74mm x 67.2mm
● Weight: 265g

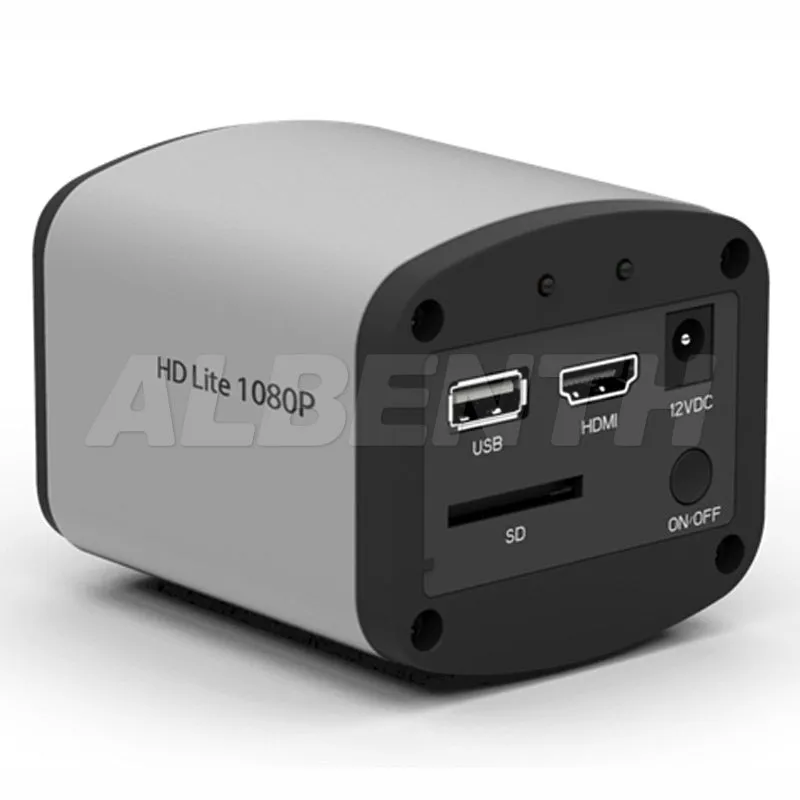

● Data Interface: HDMI, USB2.0, SD card
● Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
● Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
● PC configuration: CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
● Applications: Stereo, Biological, Metallographic, Polarizing Microscopes

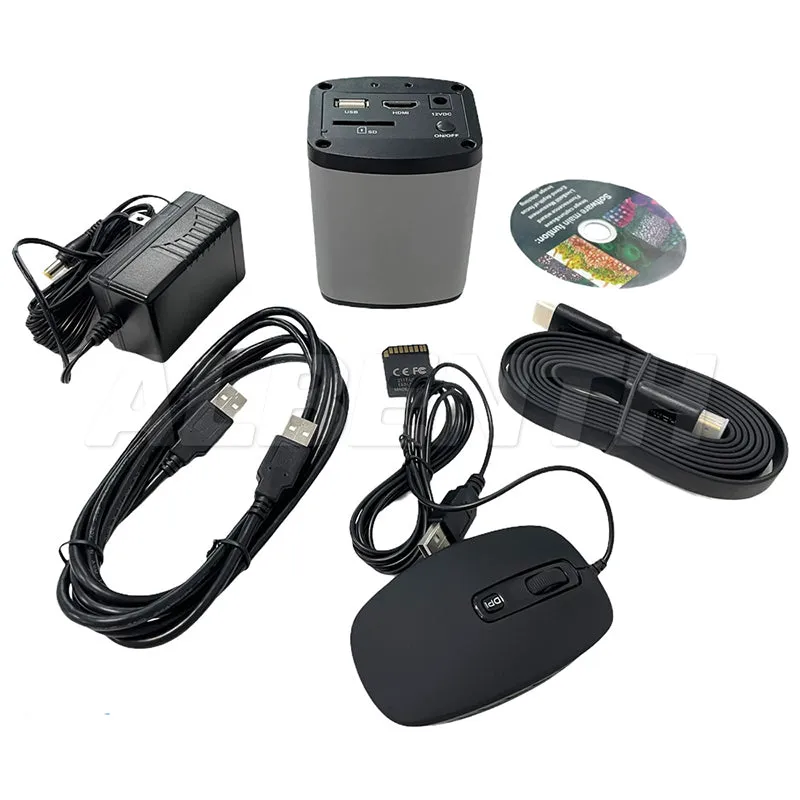

Packing list:
1x RT50H-5MHD HD Camera
1x HDMI Cable
1x USB 2.0 Cable
1x 12V Power Adapter
1x 8GB SD Card
1x USB Mouse
1x PC Imaging Software
